6MPa horizontal gas pressing sintering furnaceGas Press Sintering Series-Shanghai Chenhua Science Technology Corp., Ltd.

6MPa horizontal gas pressing sintering furnace 先进陶瓷

6MPa horizontal gas pressing sintering furnace

Share with：

Online inquiry and order

details

Apllication & Features:

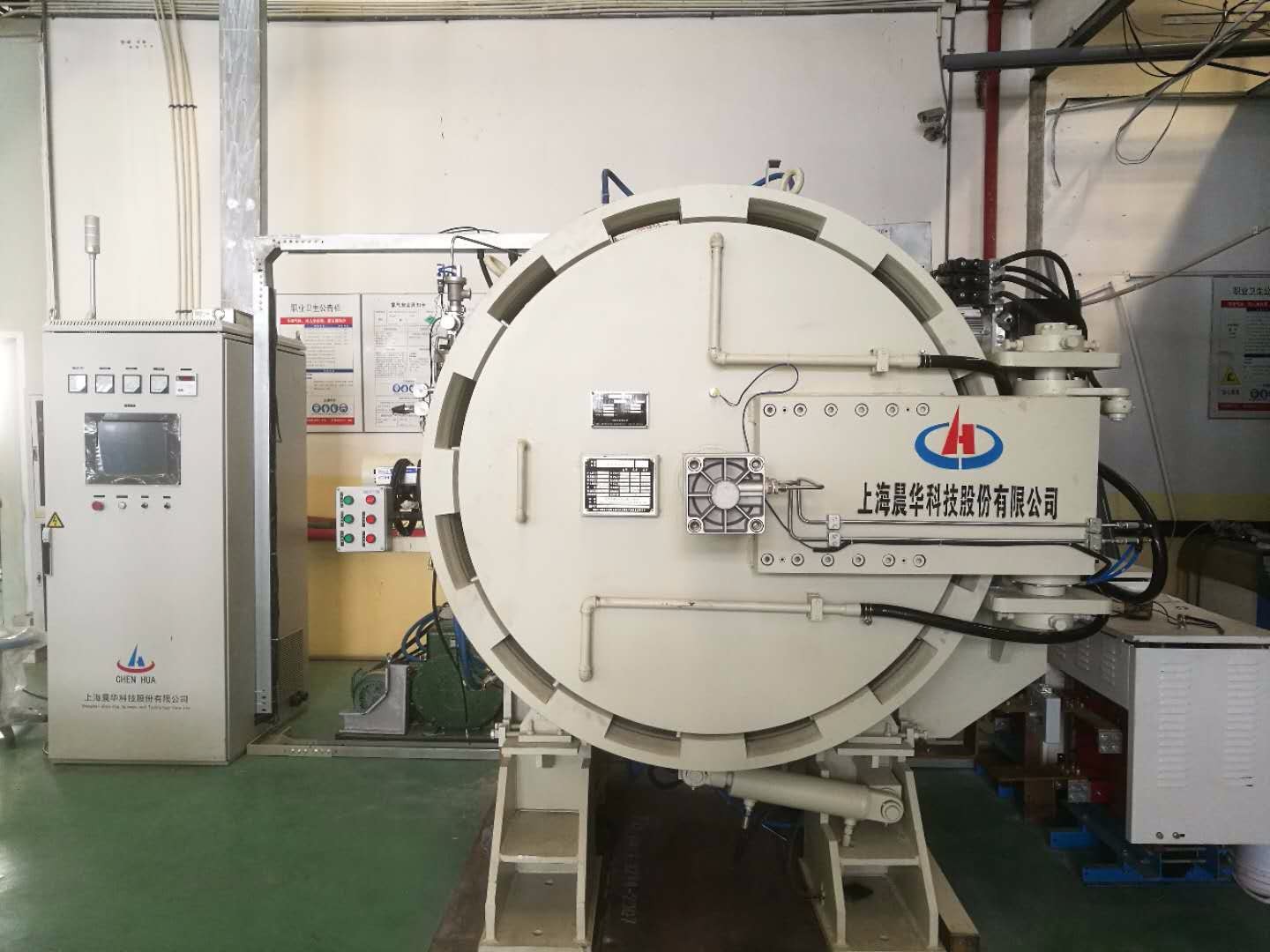

The furnace is horizontal structure, which is designed and made according to the standards of pressure vessel.

Heating zone is divided into two zones, isostatic pressing graphite is used as heating element.

Just apply to the sintering of ceramic ball of silicon nitride and cemented carbide etc. under the condition of the high pressure,

which conduces to enhancing the sintering density and raising the mechanical property of material.

Also fit for the sintering of fluorescent powder.

PLC safe mornitoring system:

Main technical parameters:

Model: ZTQ-200-22

1 Rated power: 200KW

2 Max. temperature: 2200℃

3 Working zone:375X375X475mm

4 Final vacuum: 1Pa

5 Max. sintering pressure: 6MPa
