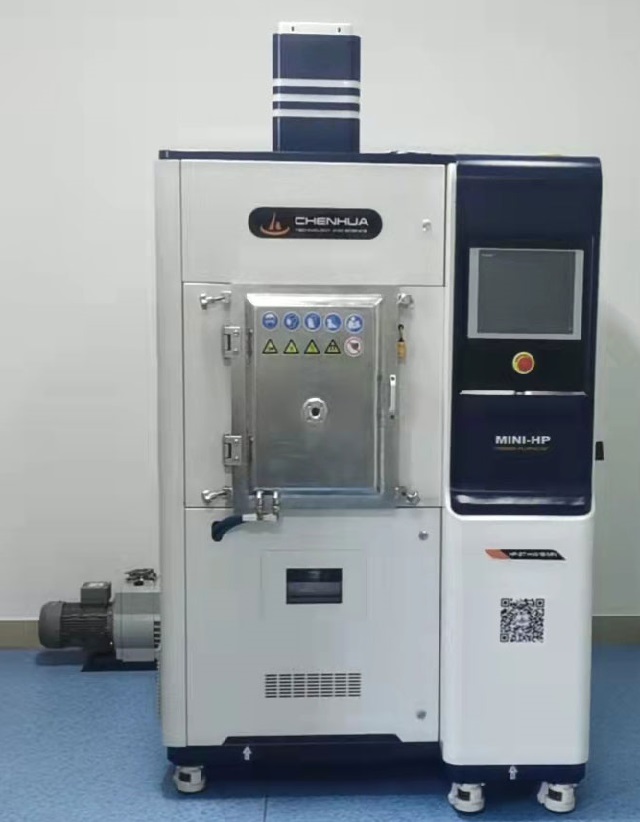

    Mini vacuum diffusion welding furnace

    Application:

    The furnace mainly used for the vacuum diffusion welding of metals and ceramics,

    also for the hot press shaping of metallic materials and the hot press sintering of the transparent

    inorganic materials.

    Features:

    The vertical structure, stainless steel furnace shells; side door suitable for loading and unloading.

    Tungsten mesh heating elements conduces to heating.

    1.Electric servo pressing system, owing the better controlling precision of pressure and displacement.

    2.Vacuum system consists of the direct-driving mechanical pump and turbo molecular pump

    with high vacuum.

    3.the metallic heating radiation possessing the better thermal insulation.

    4.Controlling mode of PLC plus touching screen, automatic operation.

    Main technical parameters:

    Model

    Max.

     press.

    Rated

    power

    Leak

    rate

    Max.

    Temp.

    Working area

    Heating  rate

    Punch

    displacement

    Final

    vacuum

    HP-2T-L-G-18-MIN2T18KW≤5Pa2000℃Ø80X120mm

    ≤20℃/m（T≤800℃）

    ≤10℃/m（T≤1800℃）

    ≤5℃/m（T＞1800℃）

    		60mm10Pa
    HP-2T-H-G-18-MIN2T6.67X10-4Pa
    HP-3T-L-G-18-MIN3T10Pa
    HP-3T-H-G-18-MIN3T6.67X10-4Pa
