    10kg vacuum induction melting furnace 精品系列
    Vacuum medium frequency induction melting furnace for laborartory
    Online consulting customer service
    Share with：
    Document download
    Online inquiry and order
    details

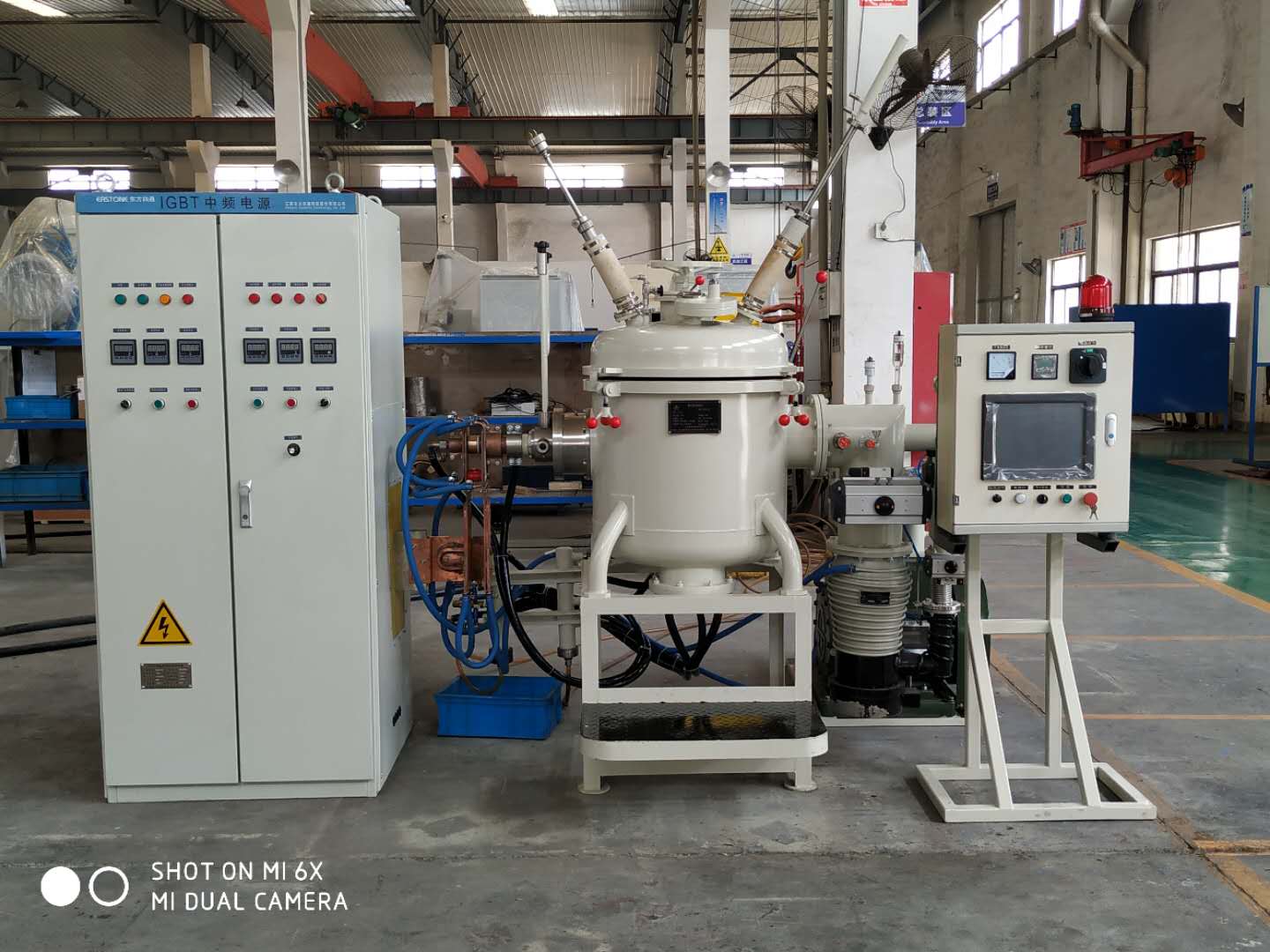

    10kg vacuum induction melting furnace



    Features:

    1. Using IGBT power, fast melting speed, energy saving.

    2. Multi-functional furnace cover design, owing the functions of temperature measurement,

     sampling and material feeding.

    3. Unique rotary watching window, convenient to use it.

    4. Advanced vacuum filter, which prolong the life of vacuum pump.

    5. Improved mechanism fixed the coil, coil can’t deform.

    Main technical parameters:

    Model:ZG-10

    1.Power; 60KW

    2.Frequency:3000-4000Hz

    3.Crucible capacity: 5-10kg

    4.Max. temperature: 1700℃

    5.Ultimate vacuum: 5X10-3Pa

    6.Leak rate: 2Pa/h.
